automatic cnc 2d wire bending,stirrup bender machine

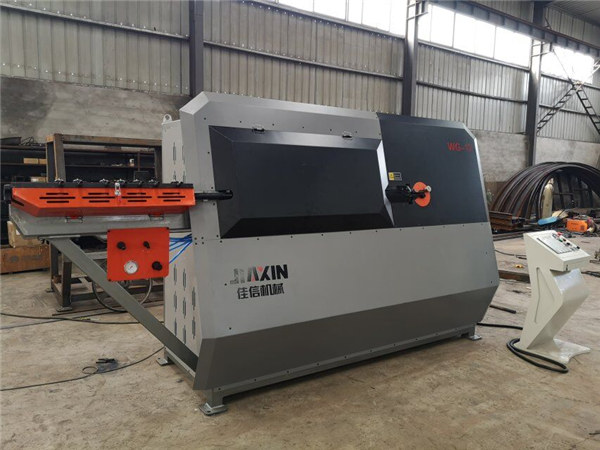

automatic CNC 2d wire bending / stirrup bender machine

---

The automatic CNC 2d wire bending / stirrup bender machine is a high-tech product. It is integrated with 3 functions, strengthening, bending and cutting functions, so steel bars can be hooped and bended by it in one step. automatic CNC 2d wire bending / stirrup bender machine, controlling with malfunction alarm, PLC, servo motor and electric components of internationally konwn brand like INVT, Mitsubishi, is capable of providing our products by the most accurate cutting , straightening, bending and effect. automatic CNC 2d wire bending / stirrup bender machine is widespread used in high speed way, bridge, real estate, reinforcing steel processing factories area, etc.

What's the highlights of wire bending / stirrup bender?

---

a.Adopts automatic stirrup bender machine CNC servo control system and self-developed operation system based on internationally known PLC. Achieves memory storage of graphics, the humanized operation interface is extremely easy to operate.

b.The automatic CNC 2d wire bending / stirrup bender machine of elbow adopts bi-directional bending design, which enables the machine to work at a large processing range.

Humanized Operation Interface

Main Technical Specifications of wire bending / stirrup bender

Model	JIAXIN12BX
Single wire Diameter(mm)	φ5-12
Double wire Diameter(mm)	φ5-10
Max Bending Angle (°)	180
Max Pulling Speed (m/min)	120
Max Bending Speed (°/s)	1000
Bending Direction	Bi-direction
Length Tolerance (mm)	±2
Bending Tolerance (°)	±1
Single wire Max Production capacity(hour)	900(standard size)
Double wire Max Production Capacity(hour)	1800(standard size)
Equipment Sizes (mm) L*W*H	4000*1080*1975
Installed Power(kw)	30
Weight(kg)	2000
Working (℃)	-5-40
Cylinder Pressure(Mpa)	≥0.6

Quick Details

---

Condition:New, stirrup bender
Place of Origin:Shandong, China (Mainland),
Brand Name:JIAXIN
Machine Type:Coiling Bending Machine, steel cutting and bending
Raw Material:Steel Bar
Material / Metal Processed:Carbon Steel
Power:Cnc, electric
Automation:Automatic, High Degree Automatic
Extra Services:Cut To Length
Certification:CE, CE
Raw material:coil wire
Product name:automatic CNC 2d wire bending / stirrup bender machine
OEM:support
After-sales Service Provided:Engineers available to service
