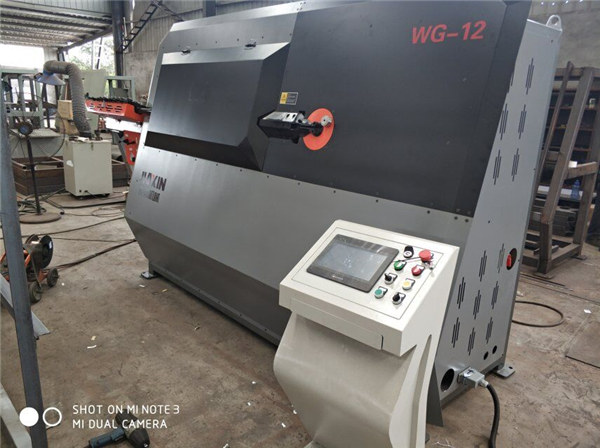

factory price double-wired automatic stirrup bending machine

Quick Details

Condition:New
Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Machine Type:Roller-Bending Machine
Raw Material:Steel Bar
Material / Metal Processed:Carbon Steel
Power:wire stirrup machine, 35.5kw
Automation:Manual
Extra Services:wire stirrup machine
Certification:ISO 9001:2000
Name:wire stirrup machine
Single wire:5-13mm
Double wire:4-10mm
Production capacity per month:200tons with 10hours/day and 6days/week
Max. bending angle:±180° [double direction]
Max. bending speed:1000 [°/sec]
Max. pulling speed:100 [m/min]
After-sales Service Provided:Engineers available to service

Product Description

Wire stirrup machine controlled by servo system, can automatically accomplish elastic,straighten,

stirrup bending, cutting and so on.

GTW4-12A wire stirrup machine is an full-automatic CNC stirrup bar straightening and bending equipment used on construction project. It has high working efficiency of 30 pieces per min with computer controled, which ensures the high accuracy, can bend the stirrup bar into various angles. And it is easy to

operate ,with safe working, reliable quality and quite high efficiency.

Application: Widely used in construction industry and rebar manufacturing enterprise; for steel wire rod,

steel bar, steel rebar, etc.

TECHNICAL DATA of wire stirrup machine:

Production capacity	Single wire	Φ4 – 13 [mm]
	Double wire	Φ4 – 10 [mm]
Production capacity per month		200tons with 10hours/day and 6days/week
Max. bending angle		±180° [double direction]
Max. bending speed		1000 [°/sec]
Max. pulling speed		100 [m/min]
Mandrel diameter		Φ25 – Φ32 [mm]
Max. length of the stirrup side		950 [mm]
Min. length of the stirrup side		50 [mm]
Length tolerance		± 1 [mm]
Bending tolerance		± 1°
Average air-compressed consumption		6 [l/min]
Average electric power consumption		5 [KW]
Labeled electric power		25 [KW]
Voltage		415 [V] – 50 [Hz]
Overall machine weight		2,600 [Kg]
Overall dimension		8030 × 2005 × 2015 [mm]

Function of wire stirrup machine:

1. automaticly straightening

2. automaticly measure

3. automaticly bending (to different shapes used in construction projects)

4. automaticly cutting

CHARACTERISTIC of wire stirrup machine

1. Automatic wire feeding system ( PLC ).

2. Split, multi-blade design (patented) to reduce consumption costs

3. Large storage capacity can save 300 processing geometric graphics, high degree automation

4. Automatic double wire intake system, high processing efficiency

6. High power feeding motor to ensure bending bar accuracy.

7. The intelligent fault identification alarm system maintenance more convenient

8. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.

9. Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines

caused by downtime

10.High quality special material and high treatment to make straightening wheels, traction wheels, the

metering wheel, longer life with lower operating costs

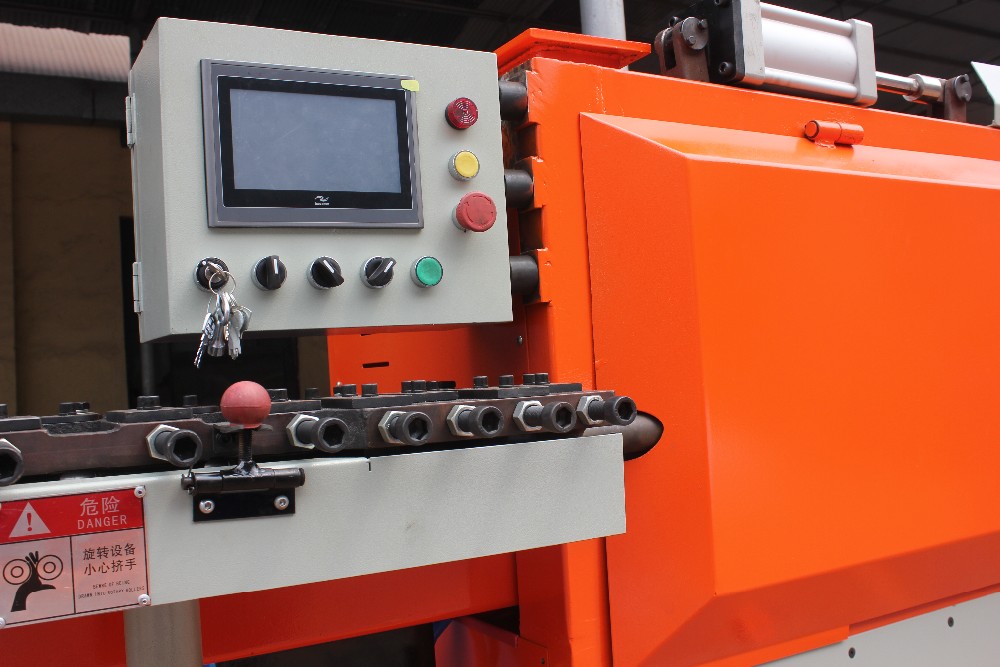

11. Touch-screen console, easy to operate, and more fast

12. Control systems Electric parts: CHINESE TOP 1 BRAND.

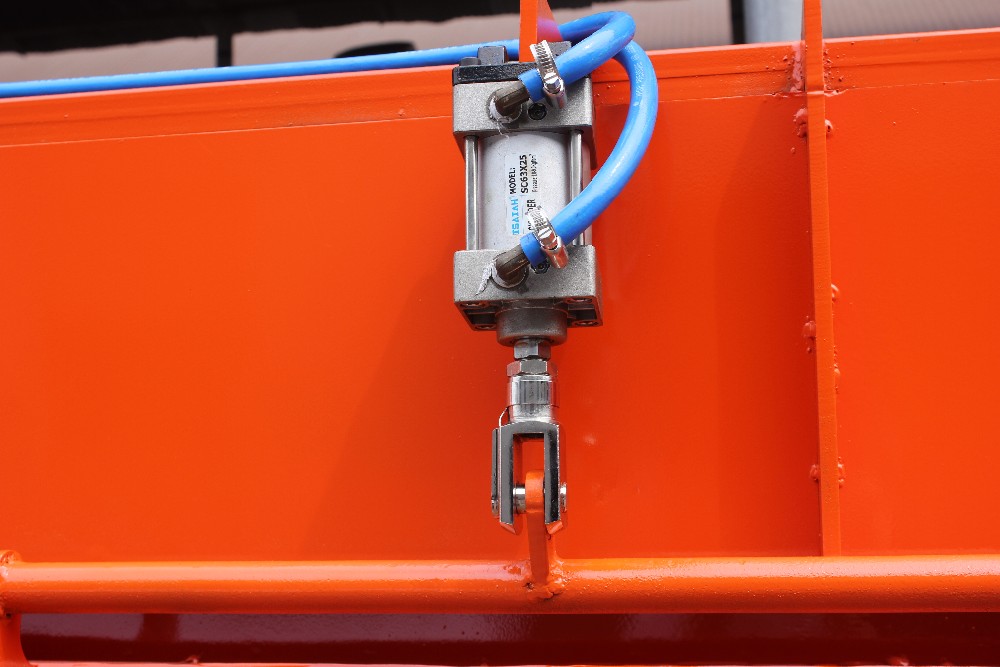

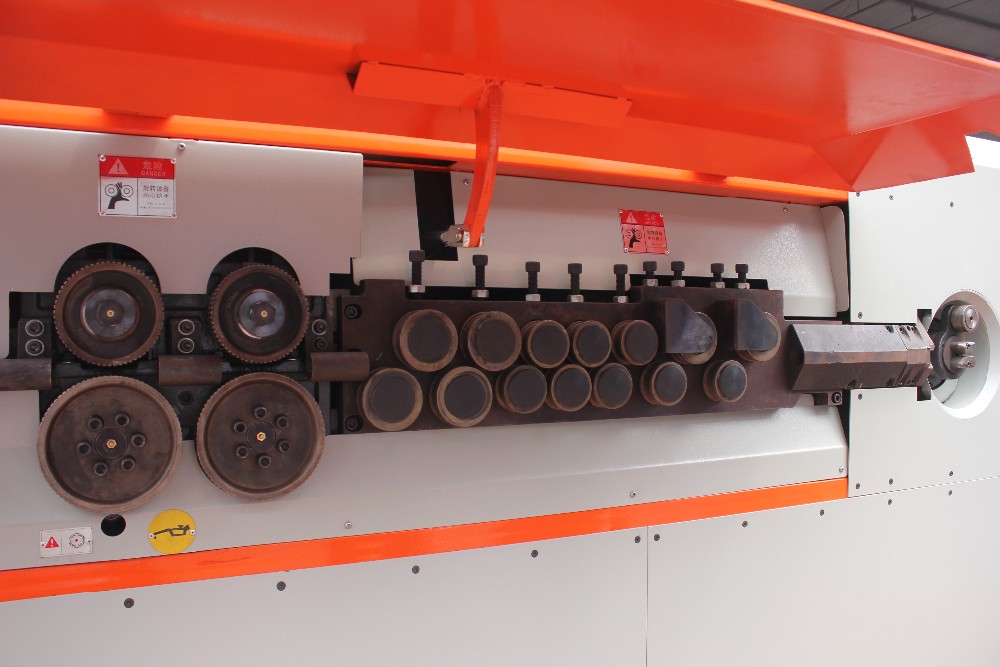

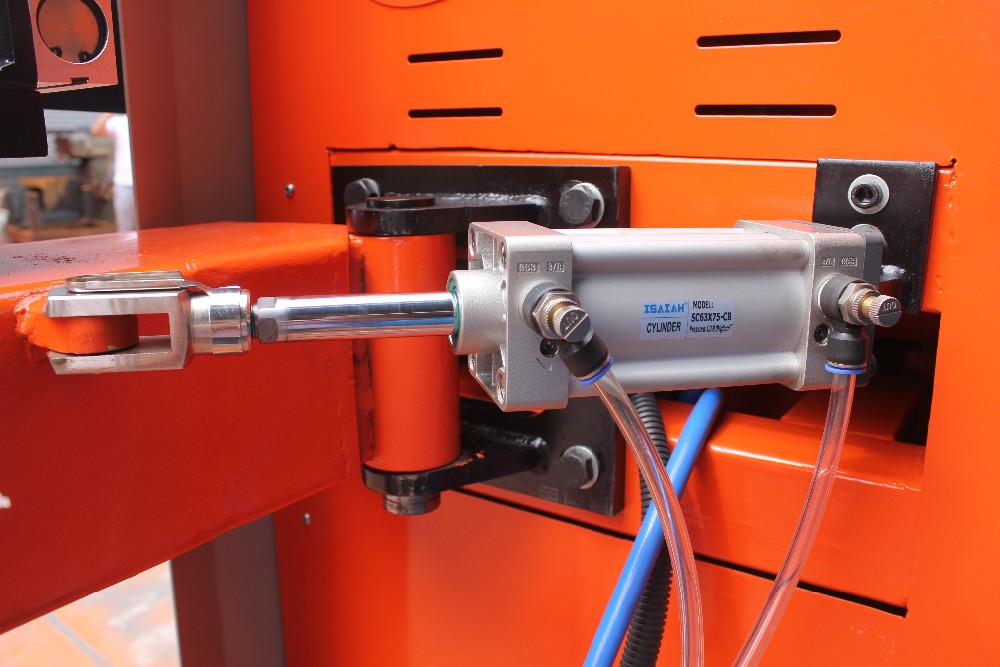

Detailed machine images:

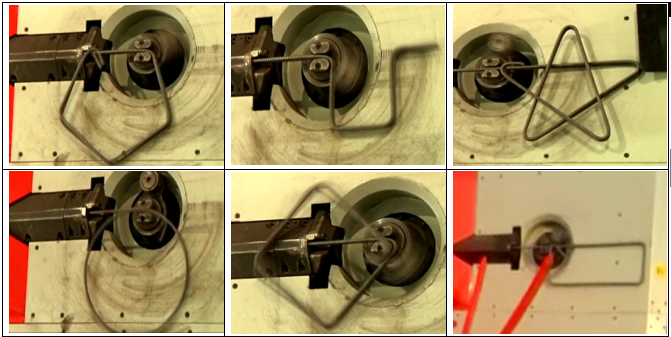

This machine can bend different shapes as your demand,just need design the shapes on computer,then can bend,after you buy our machine you can offer the shaps to us,our engineer can set in the computer,also we will Teach you how to design on the computer.
