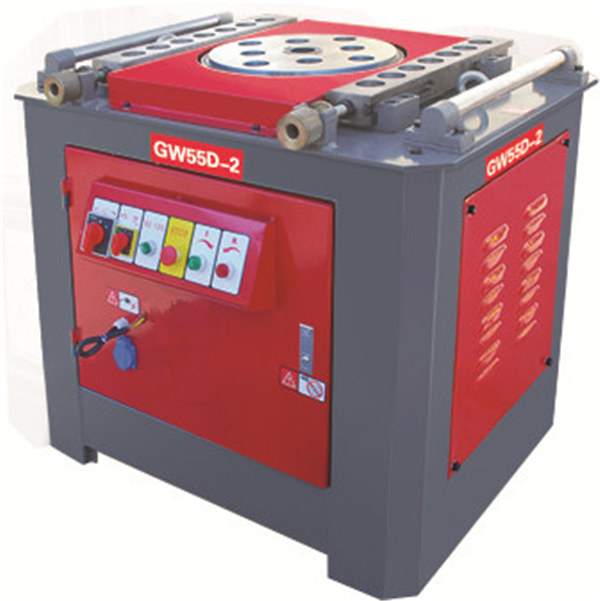

hot sell rebar processing equiment rebar bending machine made in China

hot sell Rebar Processing Equiment Rebar bending machine made in China

hot sell Rebar Processing Equiment Rebar bending machine made in China

Steel bar bending machine is one of the steel bar processing tools , it constituted by the motor, gear, operation disc, breaker and machine body.

This machine is able to bend steel bar diameter 6/55mm into various shapes that required, and it is widely used in road,bridge, tunnels and other giant construction projects.

model
bending diameter
axis rotate speed
motor power
operation disc spec
size
weight
GW40
Φ6-40mm
5-10r/min
3KW
Φ320mm
900*800*900mm
210KG
W40B
Φ6-40mm
5-10r/min
KW
Φ320mm
860*760*711mm
230KG
GW40G
Φ6-40mm
5-10r/min
3KW
Φ320mm
870*760*750mm
260KG
GW50
Φ6-50mm
5r/min
4KW
Φ420mm
1060*800*750mm
350KG
GW60
Φ6-60mm
5r/min
7.5KW
Φ500mm
1200*980*750mm
800KG
GW70
Φ6-70mm
5r/min
11KW
Φ500mm
1200*980*950mm
900KG
model
bending diameter
working speed
motor power
motor speed
size
weight
GF20
Φ4-20mm
25-30r/min
2.2KW
1440r/min
500*800*1300mm
130KG
GF25
Φ4-25mm
25-30r/min
3KW
25-30r/min
500*800*1300mm
140KG
GF32
Φ4-32mm
25-30r/min
3KW
25-30r/min
500*800*1300mm
160KG
Model
bending diameter
working speed
motor power
motor speed
size
weight
WH24
Φ12-24mm
20m/min
3KW
1440r/min
860*600*700mm
360KG
WH32
Φ25-32mm
20m/min
3KW
1440r/min
960*760*800mm
430KG
GWH36
Φ32-40mm
20m/min
4KW
1440r/min
1180*1000*880mm
600KG
GWH40
Φ45-50mm
20m/min
5.5KW
1440r/min
1180*1000*880mm
600KG

hot sell Rebar Processing Equiment Rebar bending machine made in China

1.100% copper motor with speed 1420r/min, normally this motor can work 2 years without breaking
2. our gear material ductile iron QT500-7 ,which have high precision and hardness .all the gears are fine processed twice.
3. The operation disc material carbon structure steel
4. The painting , beautiful anti-rust spray painting inside and outside .
5. The stop gauge can be installed from four different corners to realize the requirement of putting steel bar from various directions.
6. It is fully enclosed gear-box, low noise, high and low speed, which is easy for the worker to handle.
7. It adds eccentric bushing, ultra-high hardness accessories and adjustable baffles, so it will have longer service life .
8. We provide complete accessories, so do not worry the maintenance.
9. Our products with ISO certification in conformity with national quality standards.

FAQ

Q: What kinds of payment do you accept?
A: different payment terms is accepted, for details please ask our sales.
Q: What is your MOQ?
A: One set is ok.
Q: What is your package?
A: Iron frame and plywood cases or carton.
Q: Can you provide the motor according to our local voltage and frequency?
A: Yes, we can supply motor with voltage and frequency according to your local standard, such as 220V/338V and 50HZ/60HZ 3 phase without extra change.
Q:Is OEM/ODM acceptable?
A: Yes, our products can be customized as customer’s requirements.

Quick Details

Condition:New
Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Machine Type:rebar bending machine
Raw Material:Steel Bar
Material / Metal Processed:Carbon Steel
Power:Cnc
Automation:Manual
Extra Services:rebar bending machine
Certification:CE
key words:rebar bending machine:Model No: GW40G
round bar, square bar, angle bar:
Weight: 260KG
type: steel bar bending machine:
Power: electric 380V
color: as customer's requirement:
Accessories: free to provide
cluth: foot cluth:
OEM: allowed
bending machine:6-40mm:
Axis Rotate speed:5-10r/min
Warranty:12months:
after sale service: available overseas
Motor Power:3KW:
Operation diss spec:320mm
After-sales Service Provided:Engineers available to service
