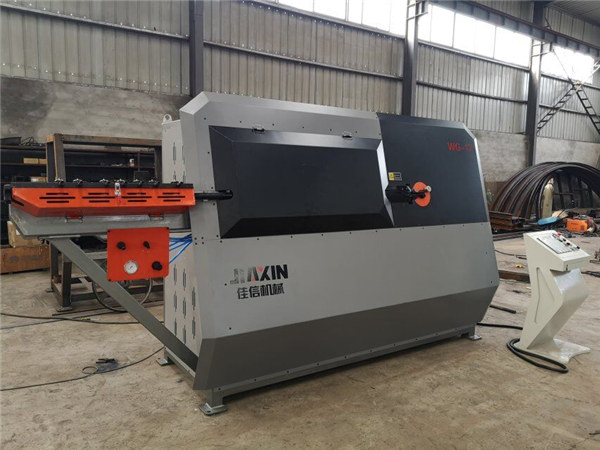

hydraulic automatic 2d cnc steel wire bending machine

Product Description

---

The steel bending hoop machine belongs to an improvement of the structure of the cnc bending machine.cnc bending machine hoop, CNC bending bending hoop machine, steel bending hoop machine.

As the two-stage brake motor and reducer directly for a first deceleration, input and output speed ratio is accurate, bending speed is stable and accurate, and can use the automatic control of electric conversion speed, the brake can guarantee the bending angle. The use of positive and negative motor, the two-way bending of the steel. The central shaft can be replaced for easy maintenance. Can be used intelligent control.

Specification of JIAXIN cnc bending machine:

---

Single strand diameter	5-10mm
Max. bending Angle	180°
Bending direction	Clockwise direction
Max. pulling speed	60m/min
Max. bending speed	1200°/sec
Max. length of square stirrup side(diagonal)	800mm
Min. length of square stirrup side	60mm
The average electrical power consumption	5KWh

Features of cnc bending machine:

---

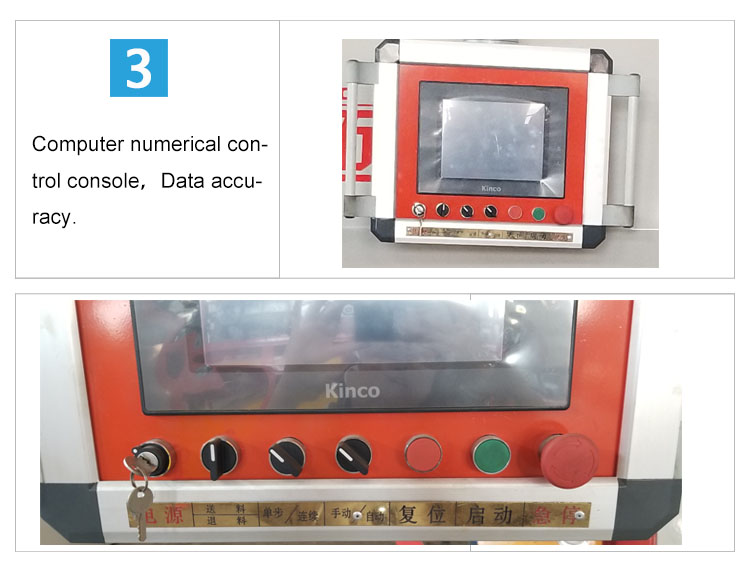

The cnc bending machine set straightening, measuring length, bending, cutting, counting in one, the whole structure is compact and compact, simple operation, high production efficiency, saving labor, the machine uses automatic microcomputer control servo drive motor, with speed Fast, powerful, technical standards, low failure advantages.

The cnc bending machine from the reinforcement feeding, descaling, straightening extension, bending forming, counting, cutting off a variety of process integration, can directly produce a variety of sizes and sizes of stirrups, fully meet the design requirements.

Advantage of cnc bending machine:

---

I digest and absorb the European advanced technology, independent research and development of the intellectual property rights of cnc bending machine, is set straightening, bending and cutting three functions and one, the use of digital program control, bending various shapes of steel processing Special equipment, the machine can bend double bars at the same time, high production efficiency, easy adjustment, favored by the users.

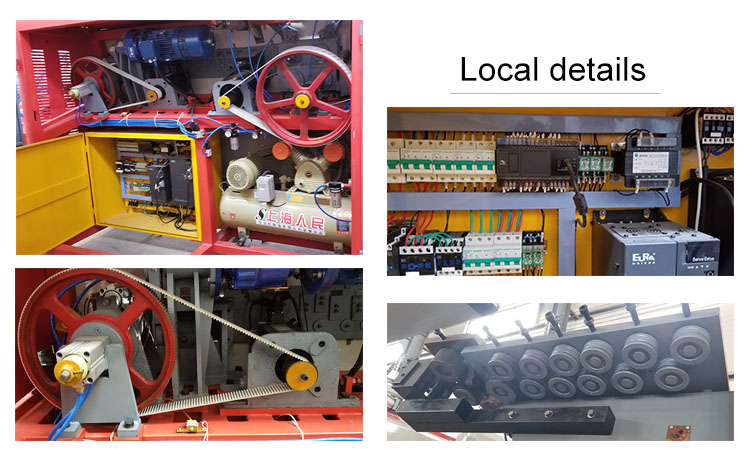

1. Special design structure, easy to deal with ribbed steel straightening, straightening ribbed steel bar does not hurt.

2. Curved steel bar straightening mechanism to improve the straightening effect of steel bars to prevent the axial torsion of steel;

3. Vertical straightening mechanism, respectively, for each steel bar straightening, to ensure the quality of steel straightening;

4. All the rollers are made of high quality alloy steel, high hardness, good wear resistance and improve the service life;

5. near the corner there are reinforced forming a steel bar, to ensure the quality of bending.

Quick Details

---

Condition:New
Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Machine Type:Beading Machine
Raw Material:Steel Bar
Material / Metal Processed:Carbon Steel
Power:Cnc
Automation:Automatic
Extra Services:Machining
Certification:ISO 9001:2000
Name:Rebar Bending Machine
Color:Customized
Type:Automatic Bender Machine

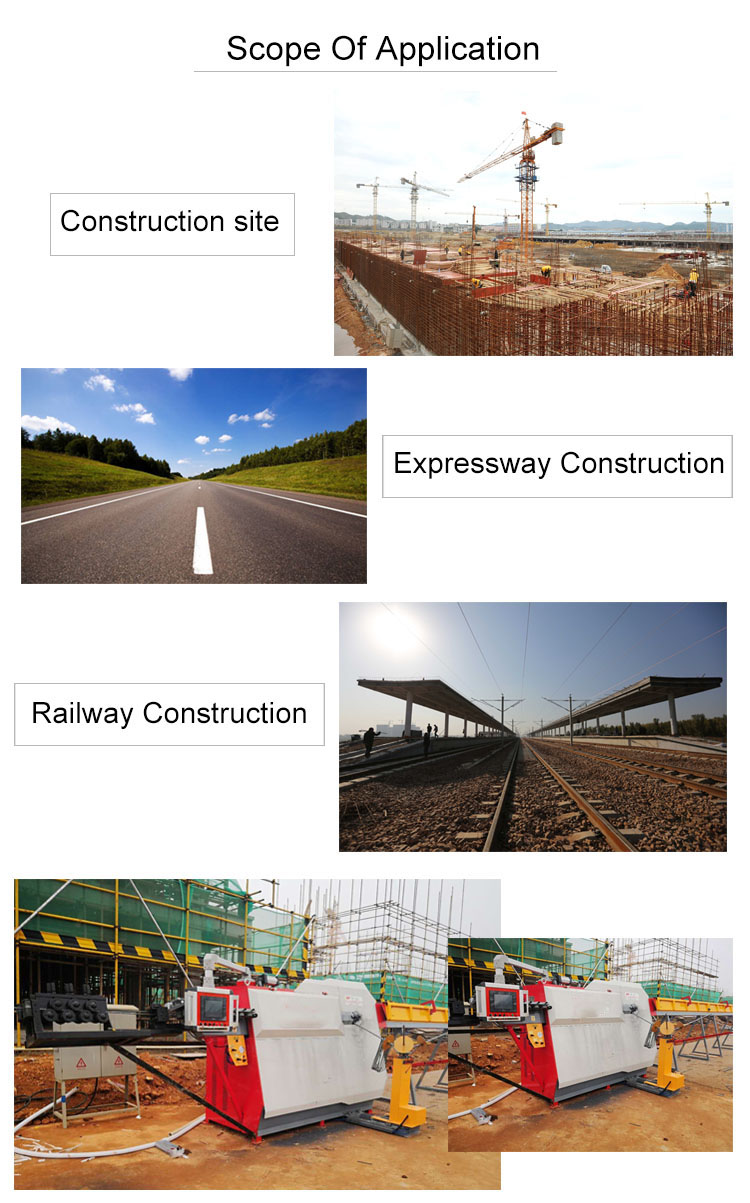

Application:Construction Projects
Usage:Stirrup Making
Material:Stainess Steel
Warranty:12 Months
Voltage:380V
Bending direction:Clockwise direction
Product name:Hydraulic Automatic 2d cnc steel wire bending machine
After-sales Service Provided:Engineers available to service
