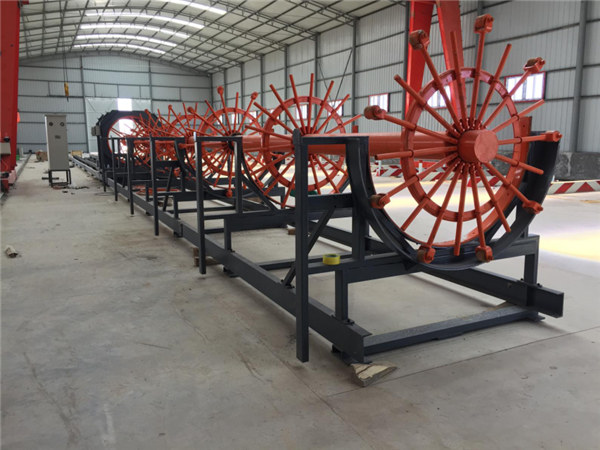

steel pile cage welding machine, steel rebar cage making machine

Type:Other, Other
Place of Origin:Shandong, China (Mainland)
Brand Name:Jiaxin
Voltage:380V
Rated Capacity:15kw
Dimensions:38.5m(L)*5.5m(W)*2.5m(H)
Weight:16000kg
Usage:cage welding machine,
Certification:ISO9001
Product name:Steel pile cage welding machine, steel rebar cage making machine
Name:Steel pile cage welding machine, steel rebar cage making machine
Warranty:1year
Color:Customer Requirement
Model:BPM-1500
After-sales Service Provided:Engineers available to service machine

1, automatic feeding system, could set distance on-line, little error, high quality of reinforcement cage.

2,could automatic weld exactly, reduce labour intensity.

3,use frequency conversion control system to cage holder, moving with high precision.

4, with automatic cage holder, to avoid cage curve because dead-weight.

5, high speed feeding device, high efficiency.

6, could change cage diameter and main reinforcement quantity,

7, Controller: Panasonic PLC control system, with Panasonic touchscreen and ABB inverter.

Reinforcement cage making machine
Model		BPM-1250				BPM-1500					BPM-2000					BPM-2500
Diameter of cage		200-1250mm				300-1500mm					400-2000mm					400-2500mm
Max. Cage weight(kg)		3000				4500					6000					8000
Cage length		14-27mter
Diameter of longitudinal bars		12~40mm
Diameter of spiral bars		Φ5~16mm
Distance between spiral bars		50-500mm
Hydraulic pressure		10 Mpa
Rated power		13kw					15kw					23kw					23kw
Machinedimension	Length (M)	28.5	38.5	46.5	55		27.5	38.5	46.5	54.5		27.5	38.5	46.5	54.5		29	42	50	59
	Width (M)	5	5	5	5		5.5	5.5	5.5	5.5		8	8	8	8		8.5	8.5	8.5	8.5
	Height (M)	2.2	2.2	2.2	2.2		2.5	2.5	2.5	2.5		3.3	3.3	3.3	3.3		3.5	3.5	3.5	3.5
