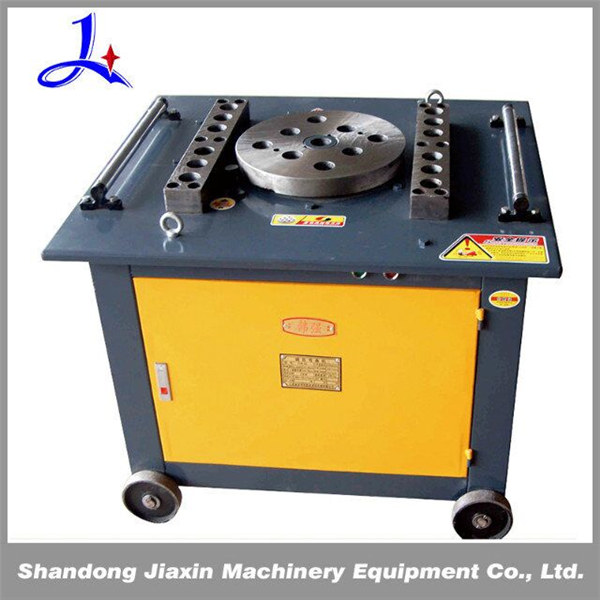

wrought iron scroll bending machine

Quick Details

---

Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: JIAXIN
Machine Type: coiling bending machine,roller-bending machine,bending machine
Raw Material: steel/plate rolling , steel bar, pipe
Material / Metal Processed: Iron, Steel
Power: electric
Automation: Automatic
Extra Services: bending
Certification: CE, ISO9001:2000
Machine name: Wrought Iron Scroll Bending Machine
Machine type: bending machine
material type: coiling bending machine, roller-bending machine, bending machine
Material: iron, steel, square tube
Raw material: sheet/plate rolling , steel bar, pipe
material/metal processed: carbon steel, stainless steel, aluminum
Certificate: CE, ISO9001:2000
warranty: 1 year
Packing size: 1000x700x1200mm

What shapes the machine can make design?

---

Show of Model scroll pattern bending machine

---

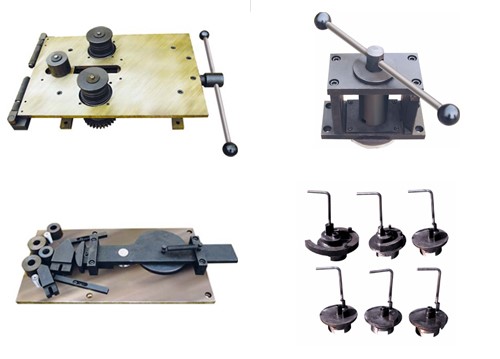

For free dies :

6 sets bending dies
3 sets for heterotype : angle bending, small round spring bending, arc bending .

Technical Parameter

---

Model	JIAXIN-DW16D
Max Work Ability	Flat Iron ≤ 50x8mm Round steel ≤ dia16mm Square steel ≤ 16x16mm
Motor Performance	Power: 2.2KW Voltage : 380V/415V/220V
Machine size	1000x700x1200mm
G.W	550KGS

Brief description

Model scroll pattern bending machine takes the all excellence from JIAXIN- DW16C,Besides that,it also have angle bending device,smal round spring bending device and arc bending device.

Exhibition of all kinds of wrought iron machine

---

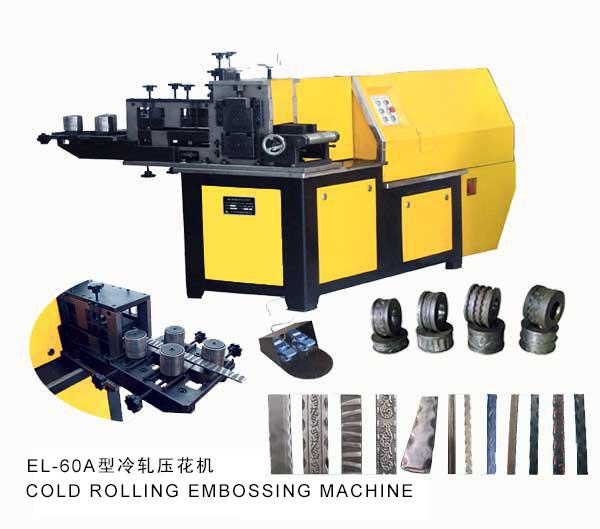

Cold rolling embossing machine

Flat Iron ≤10x60mm
Square steel ≤ 25x25mm
Square tube ≤60x60mm
Rolling speed : 380M/H
Power: 5.5KW

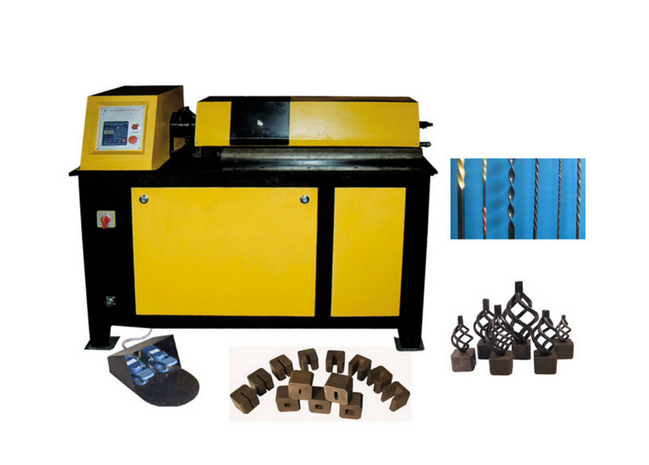

Program controlled twist and torsion machine

Max work ability length ≤ 200-800mm
Max twisting specification ≤25x25mm
Twist basket square steel: 6x6mm,7x7mm, 8x8mm
Twist basket round steel: dia 6mm, dia 8mm
Power: 4KW

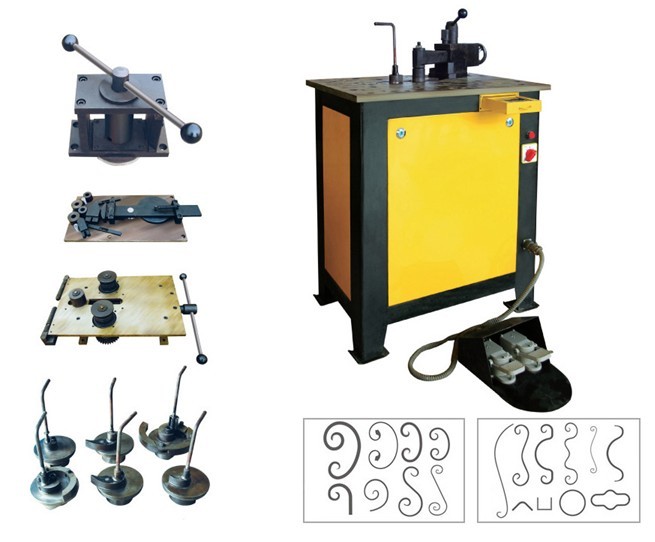

Scroll Pattern bending machine

Flat iron ≤50x8mm
Round Steel ≤ dia16mm
Square steel ≤16x16mm
Power: 2.2KW
This machine have 6 sets dies for bending, 3 sets dies for hetero-type(bend round, arc wave curve. strengthening, angle bending mechanism and bend round in batch

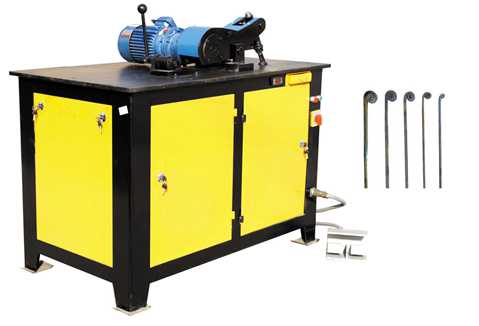

Coil rolling machine

Flat iron: 12mm-x4mm-50mmx8mm
Square steel ≤12x12mm
Power: 3.35KW
this machine max working ability of rolling coil: 40x40mm, which hight wor range .

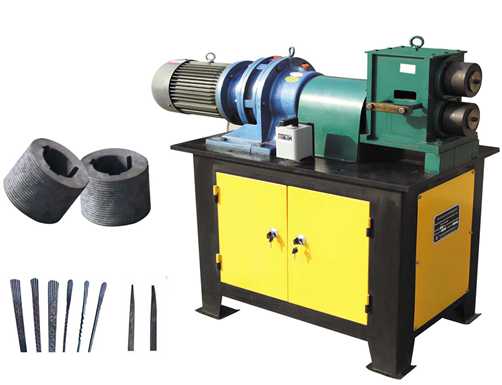

Fishtail mill machine

Square steel ≤16x16mm
Round steel ≤ dia16mm
Flat Iron ≤ 10x60mm
Power: 2.2KW

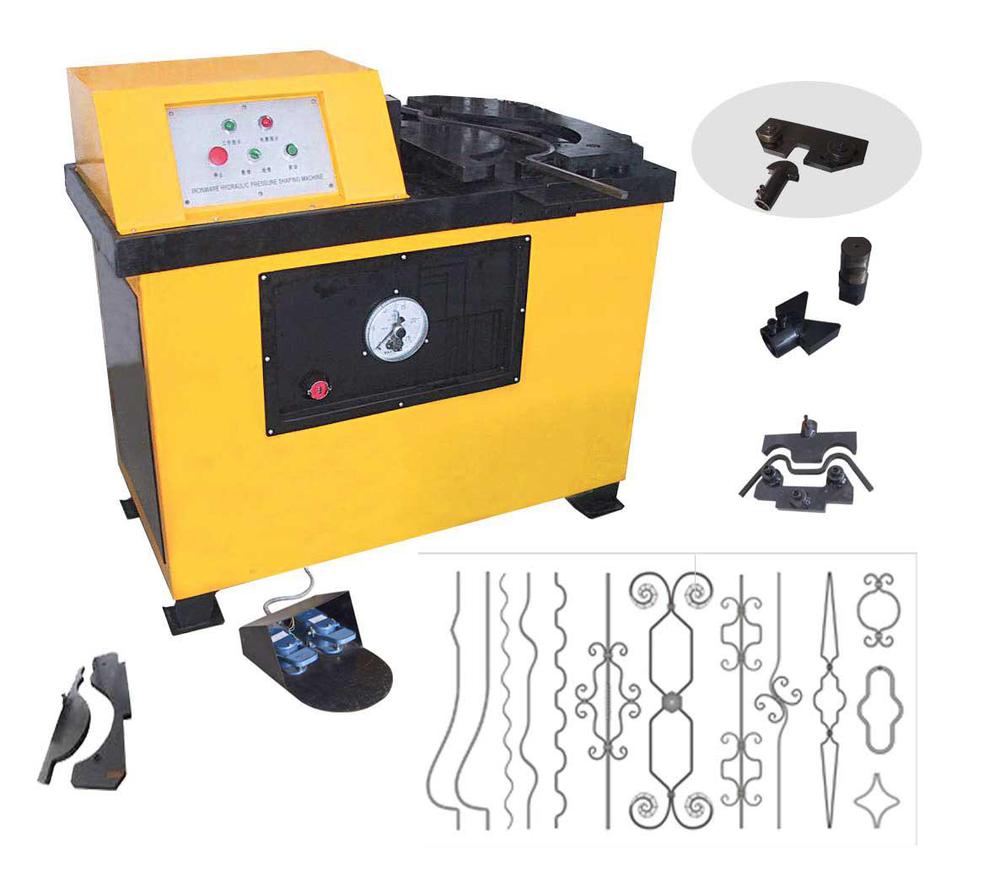

Hydraulic moulder

Flat iron ≤ 10x50mm
Round steel ≤ dia16mm
Square steel ≤16x16mm
Power: 7.5KW
This machine can finish the moulding and processing of heteromorphosis iron carftwork with good consistency, and can process parts in batches and high efficiency
